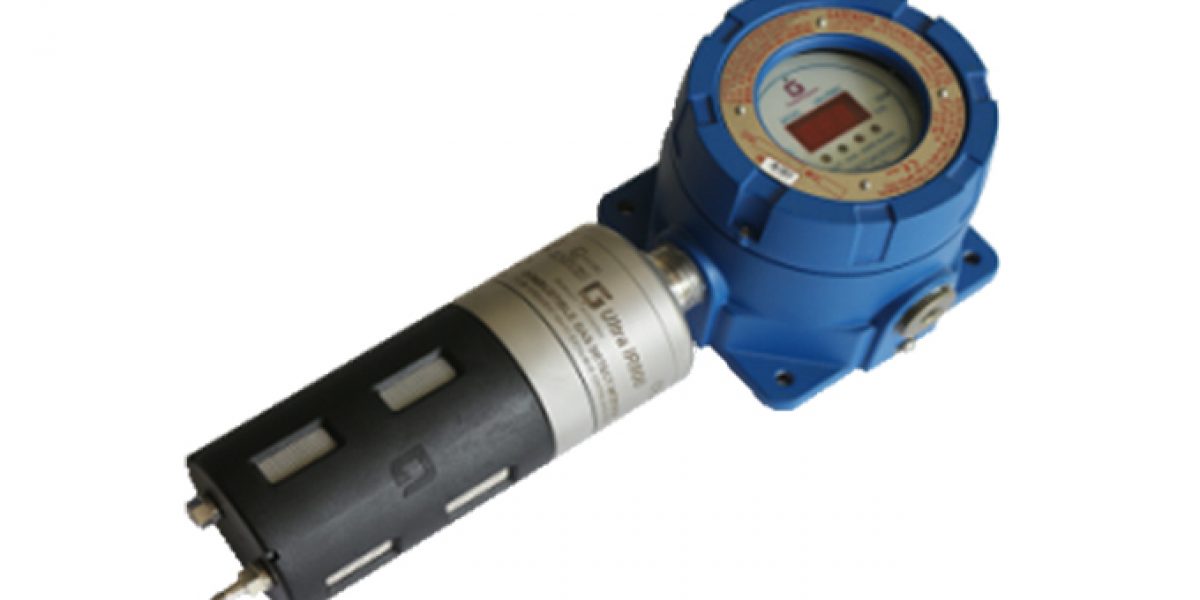

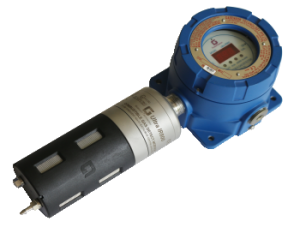

The Model Ultra IR800 Infrared (IR) Point Detector is a microprocessor-based combustible gas detector that continuously monitors combustible gases in lower explosive limit (LEL) range. Ultra IR800 is housed in an explosion-proof enclosure complete with status display, which consists of three high-brightness nixie tubes and four status indicators for gas concentration readings and status conditions. This IR point detector provides various output interfaces which includes 4-20mA current output, three sets of Normally Open Contact for Warning/Alarm/Fault status, two sets of communication interfaces for RS485 and HART interfaces.
Features
- Compatible with Automatic Remote Gas Calibrator
- Event logging
- HART and Modbus communications
- 4-20 mA analog current output
- Warning, Alarm & Fault Relays
- Calibration, Calibration Check, and Setup Modes
Specifications
Sensor Type:
Continuous diffusion, NDIR
Sensor Life:
5 years typical
Measuring Ranges:
0-100% LEL
Accuracy :
±2% LEL from 0- 50% LEL;
±5% LEL from 50-100% LEL
Response Time:
T90 <5 s with 100% LEL
methane applied
Zero Drift:
Less than 2% of full scale per year
Modes:
Calibration, gas check, setup
Gas Setting:
Methane
Display Type:
LED Displays
Electrical Classification:
ATEX II 2G Ex db IIC T6 Gb
( Tamb = -40°C to +70°C )
II 2G Ex db IIC T5 Gb
( Tamb = -40°C to +85°C )
II2D Ex tb IIIC T100°C Db IP66
SIL 2 Certified
Warranty:
Two years
