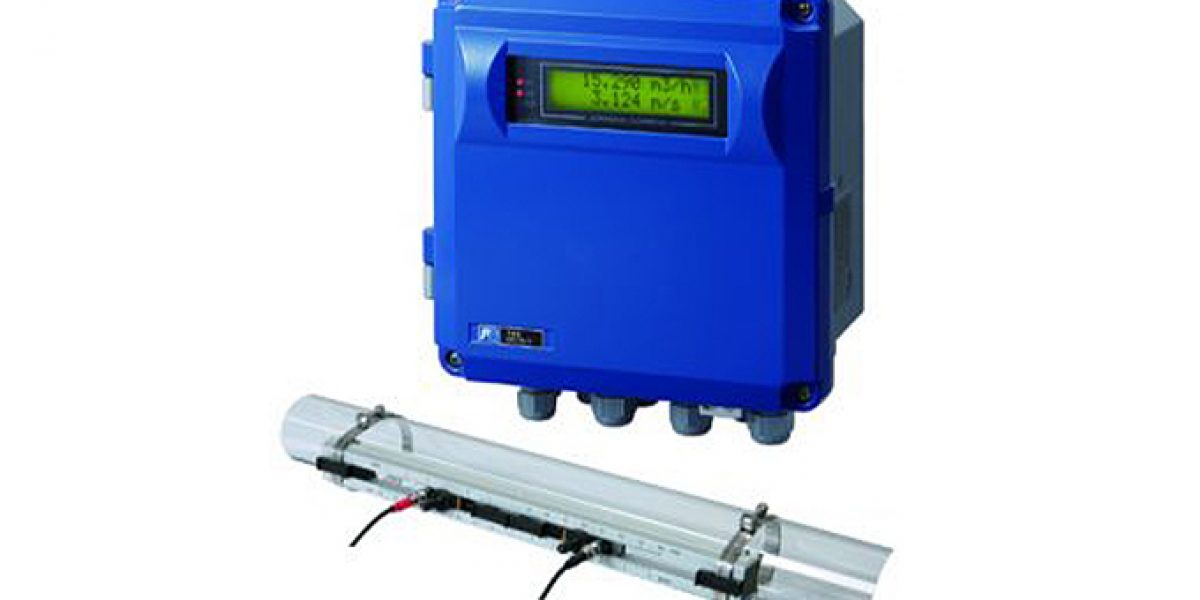

Ultrasonic Flowmeters TIME DELTA-C advanced type

Flow transmitter: FSVL
Detector: FSS

Flow transmitter: FSVL
Detector: FSS

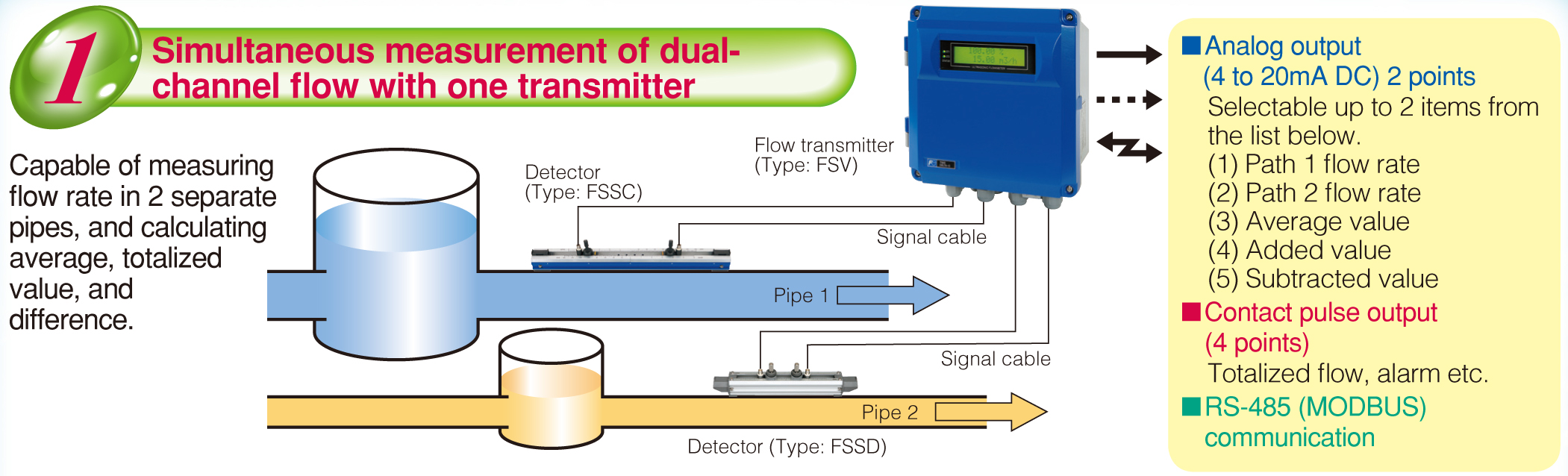

Simultaneous flow measurement of 2 pipes with one transmitter

High accuracy measurement by 2-path system for 1 pipe

Measurement of energy consumption in cooling and heating system

Detector type

Detector Inner diameter (mm) Fluid temperature (°C)
FSSA 25 to 225 -20 to 100
FSSC 50 to 1200 -40 to 120
FSSD 13 to 100 -40 to 100
FSSE 200 to 6000 -40 to 80
FSSH 50 to 400 -40 to 200
